 â€» Now : Products center >> >> Dura 12/24 ultrapure water system

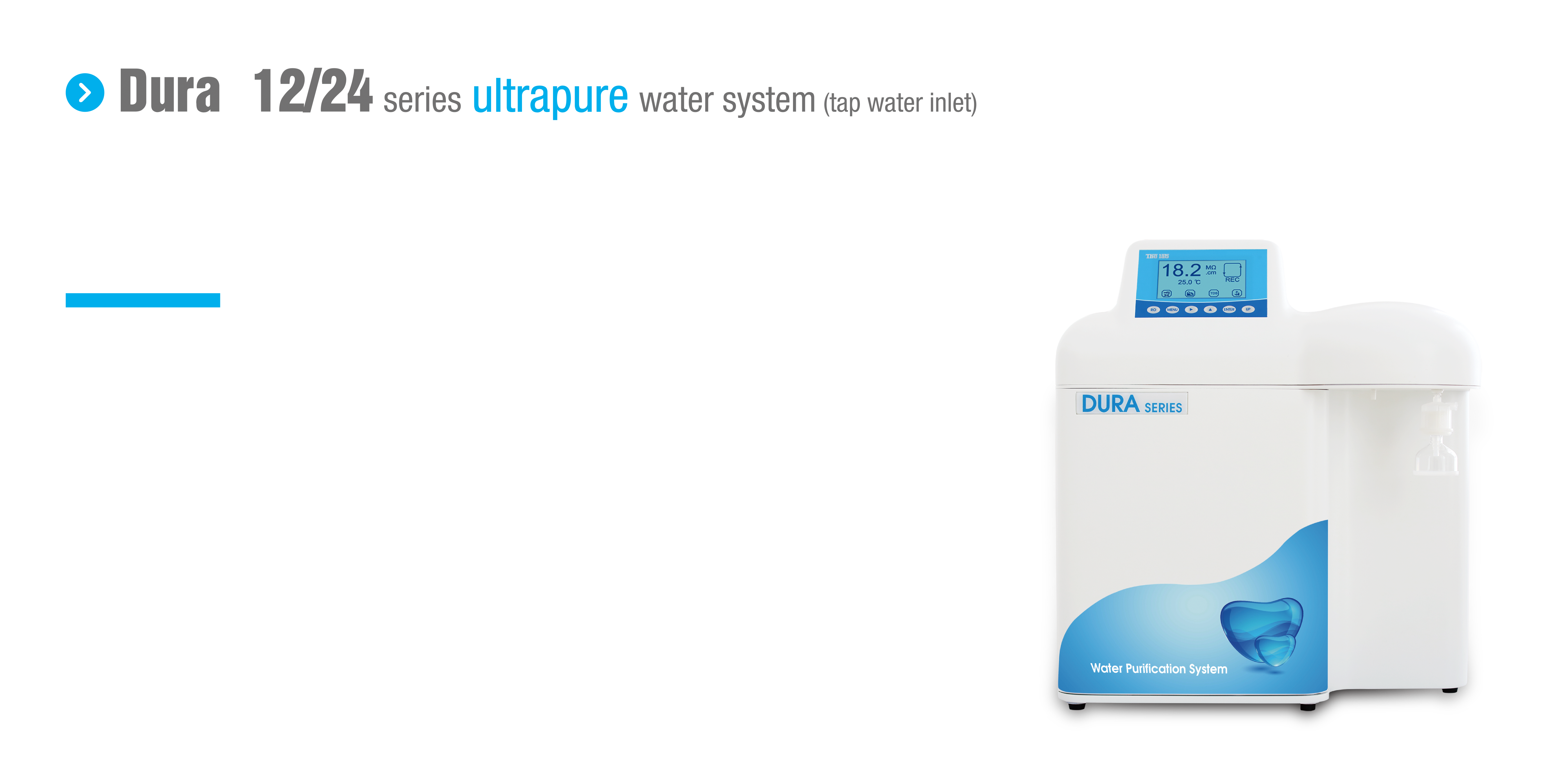

With LCD controlling system, 3 way water quality sensor, built-in 2 water tanks, 3 pump, and 2 stage RO system, Dura 12/24 series is sub-top choice of ultrapure water for high grade experiments.
With tap water inlet, its output ranges from 12 to 24 liters/hour. It can produce 2nd stage RO water and ultrapure water. The 2nd stage RO water’s conductivity can stay 1-5μs/cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

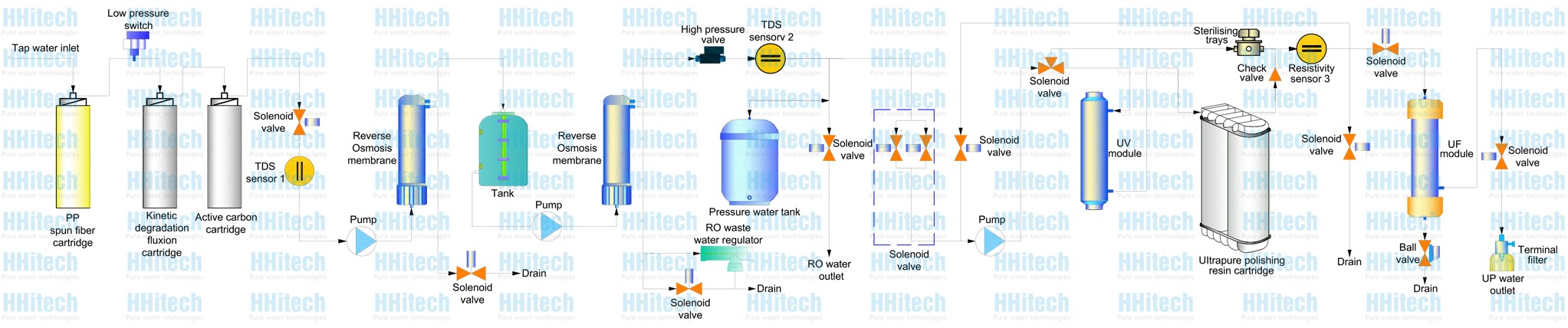

Flow Schematic
Specifications
Model Standard Eliminating endotoxin Low TOC Synthesizing
Dura 12 Dura 12F Dura 12V Dura 12FV
Dura 24 Dura 24F Dura 24V Dura 24FV
Output -2nd stage RO water* 12 or 24 liters/hour
Output -ultrapure water Up to 2 liters/minute (when tank is full)
Ultrapure water quality
Resistivity(25°C) 18.2MΩ.cm
TOC* <10ppb <10ppb <3ppb <3ppb
Bacteria <0.01cfu/ml
Particle(>0.01µm) <1/ml
Endotoxin N/A >0.001Eu/ml N/A >0.001Eu/ml
RNases N/A <1pg/ml N/A <1pg/ml
DNases N/A <5pg/ml N/A <5pg/ml
RO water quality
Conductivity - 1st stage RO water Feed water conductivity×5%*
Conductivity - 2nd stage RO water 1-5µs/cm*
Feed water requirements Tap water, temperature:5-45°C,pressure:1.0-4.0Kgf/cm2
Dimension and weight Length×Width×Height:545×470×610mm / Weight: 25Kg
Electrical requirements AC200-240V, 50/60Hz
Power 240W
Standard configuration Main body (Including 1 set of cartridge)+built-in 12 liters pressure tank
Remarks:
*The value will be influenced by temperature and feed water’s quality.

Cartridges
Item no. Commodity Approximate replacement term /set
D-PP1 Pretreatment cartridge 2-6 months
D-AK KDF+ granular active carbon mixed cartridge 12 months
D-AC2 Active carbon block cartridge 6 months
D-RO-50 50 GPD reverse osmosis membrane 12-24 months
D-RO-100 100 GPD reverse osmosis membrane 12-24 months
D-RO-150 150 GPD reverse osmosis membrane 12-24 months
D-RO-200 200 GPD reverse osmosis membrane 12-24 months
D-Uvlamp-14W (254&185) nm wavelength uv lamp 9000 hours
D-Decart Mixed bed resin cartridge 5000 liters pure water
D-Pocart4 Ultrapure polishing resin cartridge 5000 liters pure water
D-Ufcart Eliminating endotoxin uf cartridge -
D-Tefit (0.45+0.1µm) terminal filter -
